Getting Started

Getting the editor

The code can be found in the Github repo. The dependencies are managed with uv. After installing uv, clone the repo:

git clone https://github.com/vonacht/drg-room-editor.git

go into the project's directory and run the editor:

uv run main.py

The following command should fetch all the dependencies and start the editor with a blank plot:

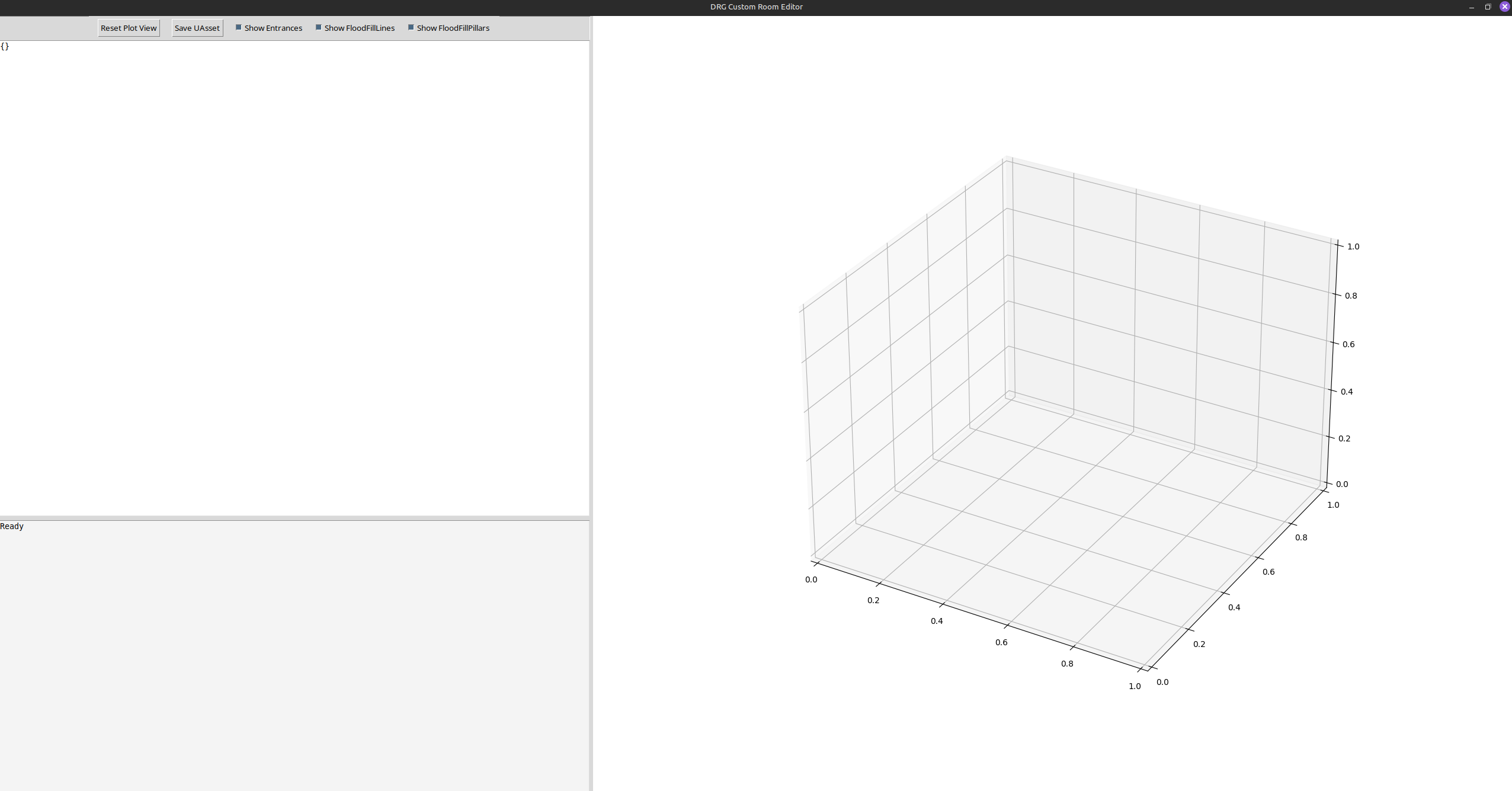

Editor Blank

You can also pass the path to an existing JSON file to open it:

uv run main.py example_rooms/RMA_Spiral.json

you can find many examples in example_rooms/.

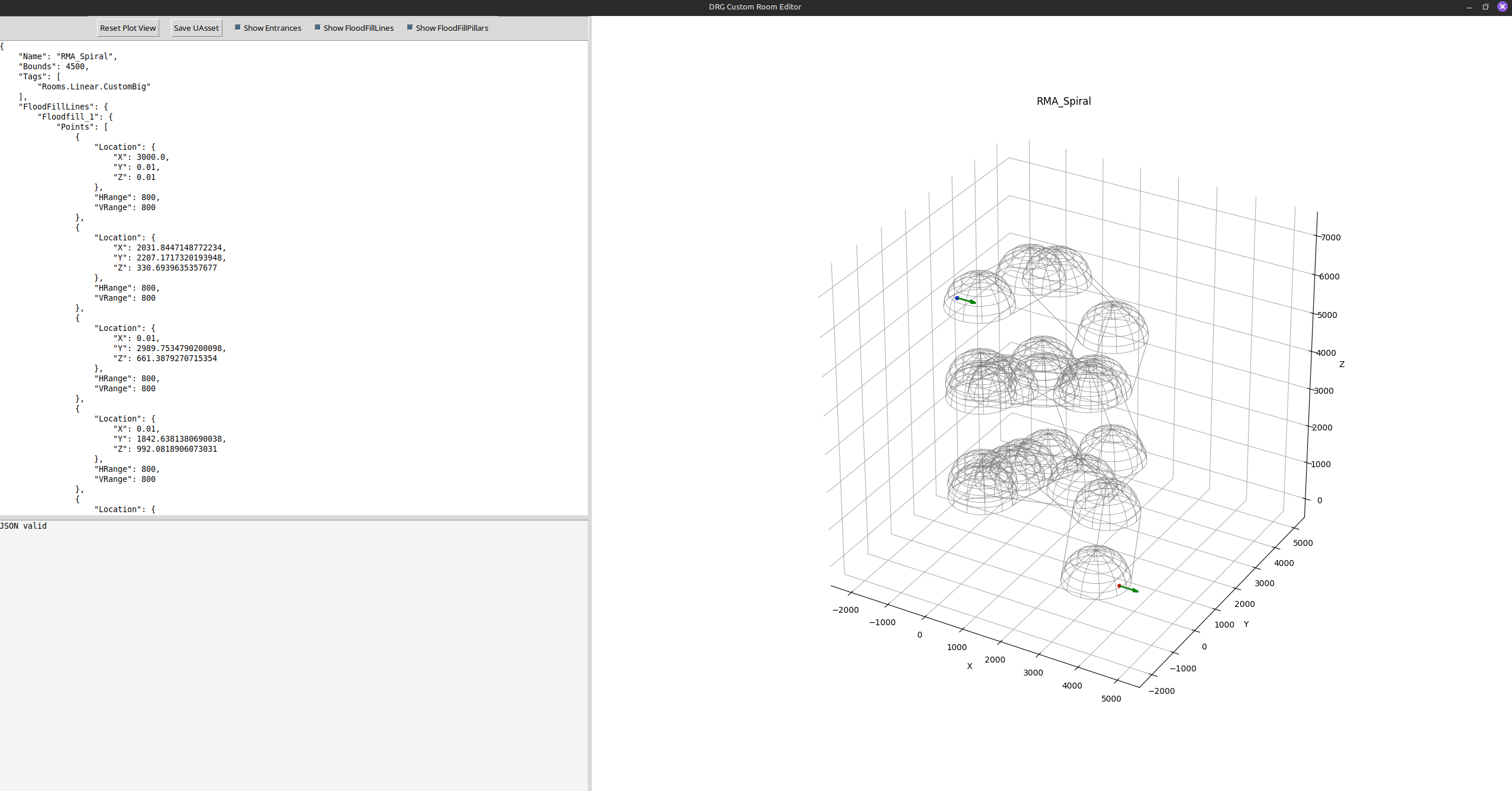

Editor Spiral

Basic Usage

The textbox on the right side contains the room JSON that is plotted on the right. A status box at the bottom warns you if the JSON is invalid or if it doesn't comply with the schema of a valid room (see Room Features). The control buttons at the top left corner, in order:

  • Reset Plot View: resets the axis position of the 3D plot.
  • Save UAsset: will save the current JSON into a UAsset that can be packed into a mod. The files are saved in the assets/ folder.
  • Show Entrances: shows the room entrances in the plot.
  • Show FloodFillLines: shows the FloodFillLine points in the plot.
  • Show FloodFillPillars: shows the FloodFillPillars in the plot.

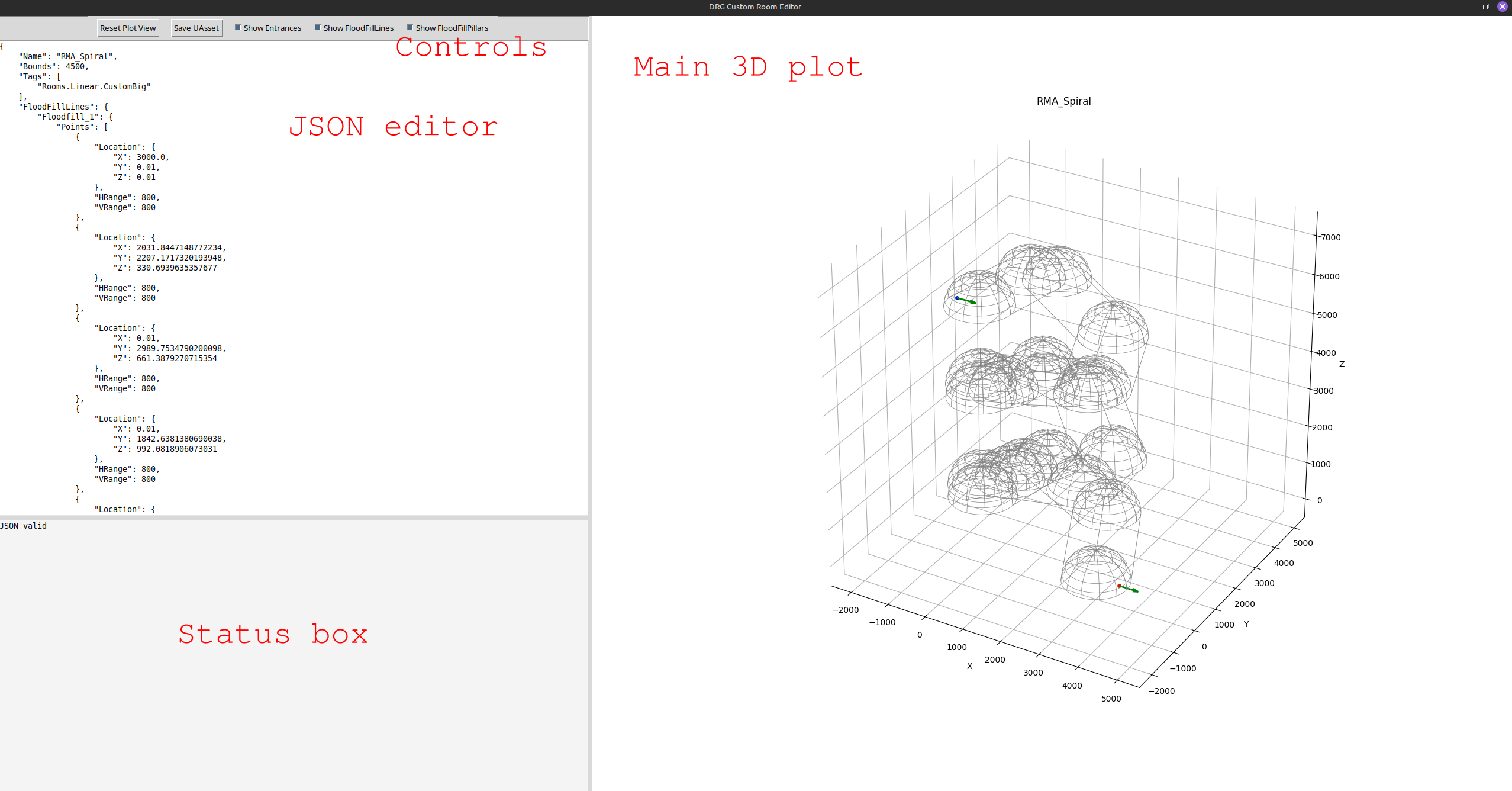

Editor Edited

Batch mode

The editor can be run without the GUI by passing the -b or --batch flag together with the path of a directory. The program will do a non-recursive scan of the directory looking for JSON files and will attempt to convert them to UAssets in the assets/ folder. Batch mode can be useful if you are generating rooms programmatically with a script. To test batch mode you can try:

uv run main.py -b example_rooms/
