Mutators

Here follows an alphabetized list of mutators for CD2.

Accumulate

Accumulate can track changes in other mutators by adding to a starting Initial number. In addition, it also supports clamping the accumulated value with Min and Max. If used with a constant value, it can be used to make a simple counter.

Example: the value of the following snippet starts at 0 and would cap at 10 after roughly 10 seconds.

{
    "Mutate": "Accumulate",
    "Initial": 0,
    "Value": 1,
    "Min": 0,
    "Max": 10
}

Add, Subtract, Multiply, Divide, Pow, Modulo, Round, Ceil, Floor

Arithmetic mutators that can be used for basic mathematical operations.

Example: enemy speed as a linear function of resupplies called during the mission.

"SpeedModifier": {
      "Mutate": "Add",
      "A": 1.35,
      "B": {
        "Mutate": "Multiply",
        "A": {
          "Mutate": "ResuppliesCalled"
        },
        "B": 0.1
      }
    }

And, Or, Not

Basic boolean operators that can be used on the outputs of boolean mutators. And and Or can take any number of inputs:

{
    "Mutate": "And",
    "A": {"Mutator1"},
    "B": {"Mutator2"},
    "C": {"Mutator3"},
    "D": {"Mutator4"}
}

and like all other similar mutators, the names of the fields can be whatever you want:

{
    "Mutate": "Or",
    "First": {"Mutator1"},
    "Second": {"Mutator2"},
    "Third": {"Mutator3"},
    "Fourth": {"Mutator4"}
}

The Not mutator takes a single boolean Value field and will return its complement. As a trivial example, the following always returns true:

{
    "Mutate": "Not",
    "Value": false
}

ByBiome

Change the value based on the mission biome. If a value isn't set for a biome it will use the 'Default' value. A 'Default' must be set unless a value is specified for biomes. If a biome is not recognized and no default is specified, the value for CrystallineCaverns will be used.

Official name Alias 1 Alias 2
BIOME_AzureWeald AzureWeald
BIOME_CrystalCaves CrystalCaves CrystallineCaverns
BIOME_DenseBiozone DenseBiozone Biozone
BIOME_FungusBogs FungusBogs
BIOME_HollowBough HollowBough
BIOME_IceCaves IceCaves GlacialStrata
BIOME_MagmaCaves MagmaCaves MagmaCore
BIOME_RadioactiveZone RadioactiveExclusionZone REZ
BIOME_SaltCaves SaltCaves SaltPits
BIOME_SandblastedCorridors SandblastedCorridors Sandblasted

ByDDStage

Change the value based on the Deep Dive stage. If a value isn't set for a stage, it will use the 'Default' value. A 'Default' must be set.

Example:

{
    "Mutate": "ByDDStage",
    "Default": 1.2,
    "Stage1": 1.0,
    "Stage2": 1.2,
    "Stage3": 1.45
 }

ByDNA

Allows setting a value based on a combination of Mission Type, Length, and Complexity:

{
  "Mutate": "ByDNA",
  "Default": 1,
  "Mining": 2,
  "Refinery": 3,
  "Refinery,x,2": 5,
  "Refinery,2": 4,
  "x,x,2": 8
}

The condition with the most matches will be prioritized. Mission type is prioritized over length and length over complexity. An “x” matches anything. In the above a (2,2) refinery would have the value 4.

ByEscortPhase

Used to detect the different stages of an Escort mission:

{
  "Mutate": "ByEscortPhase",
  "Default": 0,
  "InGarage": 0.1,
  "Stationary": 2,
  "Moving": 30,
  "WaitingForFuel": 400,
  "FinalEventA": 5,
  "FinalEventB": 0.6,
  "FinalEventC": 70,
  "FinalEventD": 8,
  "Finished": 900
}

ByMissionType

Change the value based on mission type. If a value isn't set for a mission type it will use the 'Default' value. A 'Default' must be set unless a value is specified for all mission types. Supported mission types:

  • DeepScan
  • Egg
  • Elimination
  • Escort
  • Mining
  • PE
  • Refinery
  • Sabotage
  • Salvage

Example:

{
    "Mutate": "ByMissionType",
    "Default": 60,
    "Egg": 70,
    "PE": 80
 }

BySecondary

Can be used to detect secondary objectives both on normal missions and on deep dives. The objectives have the following names:

Name
OBJ_2nd_Mine_Dystrum
OBJ_2nd_Mine_Hollomite
OBJ_2nd_KillFleas
OBJ_2nd_Find_Gunkseed
OBJ_2nd_Find_Fossil
OBJ_2nd_Find_Ebonut
OBJ_2nd_Find_BooloCap
OBJ_2nd_Find_ApocaBloom
OBJ_2nd_DestroyEggs
OBJ_2nd_DestroyBhaBarnacles
OBJ_DD_RepairMinimules
OBJ_DD_Defense
OBJ_DD_DeepScan
OBJ_DD_Morkite
OBJ_DD_Elimination_Eggs
OBJ_DD_AlienEggs
OBJ_DD_MorkiteWell

Example: change the Nitra multiplier depending on the secondary objective in deep dives (20 % more nitra on dreadnought and black box objectives).

{
    "NitraMultiplier": {
        "Mutate": "BySecondary",
        "OBJ_DD_Elimination_Eggs": 1.2,
        "OBJ_DD_Defense": 1.2
    }
}

ByTime

Change a value over time. Time matches the mission clock in the escape menu in-game, including starting before players receive control of their dwarves. The value is determined by InitialValue + RateOfChange * Max(0, Time - StartDelay).

Parameters:

  • InitialValue - Value at time 0 and up until StartDelay
  • StartDelay - Time in seconds to stay at the InitialValue before changing.
  • RateOfChange - Rate per second to change the value.

Example:

{
    "Mutate": "ByTime",
    "InitialValue": 3.1,
    "RateOfChange": 0.0033,
    "StartDelay": 400
}

ByPlayerCount

Change the value based on the number of players in-game. A solo game gets the first position in the list; two players get the second spot and so on. The last value in the list is used if there are more players than there are values in the list.

Example:

{
    "Mutate": "ByPlayerCount",
    "Values": [
        80,
        120,
        180,
        180
    ]
}

ByRefineryPhase

Used to detect the different stages of a Refinery mission.

 {
  "Mutate": "ByRefineryPhase",
  "Default": 0,
  "Landing": 1,
  "ConnectingPipes": 2,
  "PipesConnected": 3,
  "Refining": 4,
  "RefiningStalled": 5,
  "RefiningComplete": 6,
  "RocketLaunched": 7
}

ByResuppliesCalled

Allows specifying an array with indexes 0, 1, 2, etc, where the values at each index become valid when the number of resupplies corresponding to said index have been called. The most typical use is specifying a varying number of resupply costs. For example:

{
    "Resupply": {
        "Cost": {
            "Mutate": "ByResuppliesCalled",
            "Values": [40, 50, 60]
        }
    }
}

will set up the first resupply to be 40 nitra, the second to be 50 nitra and 60 for all subsequent supplies.

BySaboPhase

Used to detect the different stages of a Sabotage mission.

{
  "Mutate": "BySaboPhase",
  "Default": "Default Value",
  "Hacking": "Hacking Value",
  "BetweenHacks": "BetweenHacks Value",
  "HackingFinished": "HackingFinished Value",
  "Phase1Vent": "Phase1VentValue",
  "Phase1Eye": "Value for Phase1Eye",
  "Phase2Vent": "Value for Phase2Vent",
  "Phase2Eye": "Value for Phase2Eye",
  "Phase3Vent": "Phase3Vent Value",
  "Phase3Eye": "Value to use during Phase3Eye",
  "Finished": "Value for Finished"
}

BySalvagePhase

Used to detect the different stages of a Salvage mission. The mutator uses the Default value for any mission that is not Salvage.

{
      "Mutate":    "BySalvagePhase",
      "Default":   "Default Value",
      "Mules":     "Value until all mules repaired",
      "PreUplink": "Value while mules finished but uplink not started",
      "Uplink":    "Value during the uplink event",
      "PreRefuel": "Value between defense events",
      "Refuel":    "Value during the refuel event",
      "Finished":  "Value for the remainder of the mission"
}

Clamp

Constrain a float (number) to fall within a range. This range is inclusive. If only a min or only a max is specified, the value will only be clamped in that direction.

Example:

{
    "Mutate": "Clamp",
    "Value": 90,
    "Min": 0,
    "Max": 100
}

Countdown

A mutator that will count down from Start to Stop. It is usually used together with the Int2String mutator and the messages module to print messages on chat. It also has a Default value which is used when the countdown is not enabled. A boolean, mutable Enable field starts the countdown:

"Messages": [
    {
      "SendOnChange": true,
      "Type": "Developer",
      "Sender": "My Difficulty",
      "Message": {
        "Mutate": "Join",
        "Values": [
          "Something in...",
          {
            "Mutate": "Int2String",
            "Value": {
              "Mutate": "Countdown",
              "Start": 16,
              "Enable": true
            }
          }
        ]
      }
    }
]

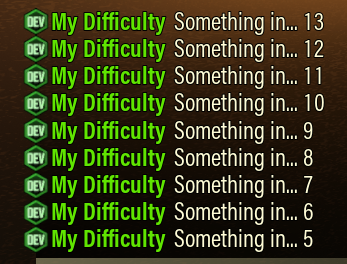

CountdownMutator
Chat output resulting from the snippet above.

If you want to trigger an event after a certain amount of time after something happens consider using the TriggerDelay and the trigger mutators instead of Countdown, at the bottom of the page.

DefenseProgress

This mutator tracks the progress of a defense event such as a black box, refuel or uplink. It returns a float between [0, 1] starting at 0.3.

Delta

Delta can be used to detect a change in some other variable or mutator, and it is often used with Accumulate.

Example: The following snippet will become momentarily true when a player receives health or shield damage.

{
    "Mutate": "IfFloat",
    "Value": {
      "Mutate": "Delta",
      "Value": {
        "Mutate": "Add",
        "A": {
          "Mutate": "DwarvesHealth"
        },
        "B": {
          "Mutate": "DwarvesShield"
        }
      }
    },
    "<": 0,
    "Then": true,
    "Else": false
}

DepositedResource

Count of a resource that has been deposited into the team depository. Any resource can be referenced by the name as it appears in the in-game UI.

Example:

{
    "Mutate": "DepositedResource",
    "Resource": "Nitra"
}

DescriptorExists

This is a boolean value which reflects whether an enemy descriptor is available. This is intended to allow a difficulty to fall back to a different descriptor if the desired descriptor isn't available, e.g. if MEV is not available. Example:

{
  "Mutate": "If",
  "Condition": {
    "Mutate": "DescriptorExists",
    "ED": "ED_MEV_Enemy"
  },
  "Then": ["ED_MEV_Enemy"],
  "Else": ["ED_Backup"]
}

DrillerCount

Number of drillers in the lobby.

DroppodDistance

Returns an average of the distance in cm between players and drop pod during mission extraction. It accepts the following fields:

  • Default: the default value to return when there is no drop pod.
  • IncludeDowned: a boolean which indicates whether to include dead dwarves in the average.

See also: MuleDroppodDistance mutator.

DuringDefend

Becomes true when a black box, uplink or cell refuel is active.

DuringDread

Becomes true whenever there is one of the following descriptors active on the map: ED_Spider_Boss_Heavy (Hiveguard), ED_Spider_Boss_TwinA (Arbalest), ED_Spider_Boss_TwinB (Lacerator) and ED_Spider_Tank_Boss (classic Dreadnought).

DuringDrillevator

Becomes true during the elevator phase in a Deep Scan mission.

DuringEggAmbush

Returns True during a non-announced wave after pulling an egg in Egg Hunts. As an example of use, the following snippet increases the EnemyCountModifier only during Egg waves, to make them more challenging. The StartingAt and StoppingAfter tries to make the increase affect only the current egg wave.

{
"DifficultySetting":
    {
    "EnemyCountModifier": {
          "Mutate": "Multiply",
          "A": {
            "Mutate": "ByPlayerCount",
            "Values": [
              1.84,
              2,
              2.32,
              2.8
            ]
          },
          "B": {
              "Mutate": "If",
              "Condition": {
                "Mutate": "DuringEggAmbush",
                "StartingAt": 5,
                "StoppingAfter": 10
              },
              "Then": 4,
              "Else": 1
            }
        }
    }
}

DuringEncounters

Becomes true when Encounters are being placed in the map, that is, during mission generation. One of its uses it to change descriptor properties depending on whether they are part of an encounter or not:

{
    "Enemies": {
        "ED_Spider_Exploder": {
             "Base": "ED_Spider_Exploder",
             "CanBeUsedForConstantPressure": true,
             "CanBeUsedInEncounters": true,
             "DifficultyRating": 10,
             "Rarity": {
               "Mutate": "If",
               "Condition": {
                 "Mutate": "DuringEncounters"
               },
               "Then": 0.1,
               "Else": 5.5
             }
        }
    }
}

The snippet will force exploders in almost all encounters by giving them a very low rarity during those. Clearing the EnemyPool when DuringEncounters is true will remove encounters from the mission.

DuringExtraction

Becomes true during the extraction phase of the mission, ie, when going back to the drop pod.

DuringGenericSwarm

Becomes true during a swarm announced by Mission Control.

DuringMission

This is true during a mission, or true during a specific window of time during a mission if times are specified. If specified, StartingAt determines the elapsed mission time in seconds when this becomes true. If specified, StoppingAfter determines the elapsed mission time in seconds after which this is false.

Example: Only add stalkers and elite guards to the pool after 240 seconds have elapsed in the mission.

"EnemyPool"{
    "add" {
        "Mutate": "If",
        "Condition": {"Mutate": "DuringMission", "StartingAt": 240},
        "Then": ["ED_Spider_Stalker", "ED_Spider_Grunt_Guard_Elite"],
        "Else": []
    }
}

DuringPECountdown

Returns True during the extraction phase of a PE mission.

DwarfCount

Returns the number of players in the mission.

DwarvesAmmo

Average percent ammo left for the team, 1 when all teammates have 100% of their ammo and 0 when all teammates are at 0% ammo. This works the same way as the 4 bars under the dwarves names in the UI.

DwarvesDown

Float count of the dwarves that are currently down, 0 if no dwarves are currently downed, 4 if all 4 dwarves are down.

DwarvesDownTime

Time in seconds that has elapsed while a dwarf has been down. If multiple dwarves are down, it's the longest time down among the downed dwarves.

DwarvesDowns

Total number of downs for the team during the mission. This might not match the end screen because it will still count downs from disconnected players, and will not over-count downs.

DwarvesHealth

Average health, 1 when all teammates are at 100% health and 0 when all teammates are down.

DwarvesRevives

Total number of revives for the team during the mission. This includes IW self-revives.

DwarvesShield

Average shields, 1 when all teammates are at full shield 0 when all teammates are at 0 shield. Untested on shield disruption.

ElapsedExtraction

Returns the elapsed time in the extraction phase of a mission.

EnemiesKilled

Count number of Enemies that have died this mission. Optionally, this can get the deaths of a specific enemy descriptor. Despawned enemies because of caps are likely counted. If your difficulty despawns significant amounts of enemies, this number might not match expectations.

Examples:

Count of all enemy kills:

{
    "Mutate": "EnemiesKilled"
}

Count of enemies that have died with a specific descriptor:

{
    "Mutate": "EnemiesKilled",
    "ED": "ED_Spider_Grunt"
}

Since CD2 v15, it is possible to specify a list of ED's and avoid having to nest addition mutators:

{
    {
      "Mutate": "EnemiesKilled",
      "EDs": [ "A", "B", "C" ]
    }
},

EnemiesRecentlySpawned

This mutator tracks enemies that spawned in the last Seconds seconds. You can track a single enemy descriptor with ED or multiple descriptors with EDs: in the last case, the mutator will return the sum of all spawned enemies that match the descriptors. If empty, the mutator will track all enemies.

Example: returns how many enemies spawned in the last 60 seconds.

{
    "Mutate": "EnemiesRecentlySpawned",
    "Seconds": 60
}

Example: return how many exploders spawned in the last 60 seconds.

{
    "Mutate": "EnemiesRecentlySpawned",
    "Seconds": 60,
    "ED": "ED_Spider_Exploder"
}

Example: return how many exploders, grunts and slashers spawned in the last 60 seconds.

{
    "Mutate": "EnemiesRecentlySpawned",
    "Seconds": 60,
    "EDs": ["ED_Spider_Grunt", "ED_Spider_Grunt_Guard", "ED_Spider_Grunt_Attacker"]
}

EnemyCooldown

This mutator tracks a timer that is true after an enemy descriptor has spawned.

{
    "ED_Example": {
        "Rarity": {
            "Mutate": "EnemyCooldown",
            "ED": "ED_Opp1",
            "CooldownTime": 60,
            "ValueDuringCooldown": 1000,
            "DefaultValue": 1
          }
    }
}

In the example, the mutator will be true for 60 seconds (the value of CooldownTime) after ED_Example has spawned. During this time, the value for the Rarity will be the value specified in ValueDuringCooldown and DefaultValue otherwise. The ED field can accept an array of enemies:

{
    "ED_Example": {
        "Rarity": {
            "Mutate": "EnemyCooldown",
            "ED": ["ED_Opp1", "ED_Opp2", "ED_Opp3"],
            "CooldownTime": 60,
            "ValueDuringCooldown": 1000,
            "DefaultValue": 1
          }
    }
}

which will start the timer whenever one of the enemies inside the array spawns.

EnemyCount

Count the number of enemies currently alive on the map. Optionally, this can get the count of a specific enemy descriptor. It's possible for this monitor to drift slightly from the actual count if base game events don't fire, but it should always be correct.

Examples: Count all enemies on the map:

{
    "Mutate": "EnemyCount"
}

Count of enemies with a specific descriptor:

{
    "Mutate": "EnemyCount",
    "ED": "ED_Spider_Grunt"
}

Since CD2 v15, it is possible to specify a list of ED's and avoid having to nest addition mutators:

{
    {
      "Mutate": "EnemyCount",
      "EDs": [ "A", "B", "C" ]
    }
},

EnemyHealth

This mutator returns the health of a descriptor or group of descriptors. The mutator can be configured to return the maximum, minimum, or average health among enemies with a descriptor. This value is a percentage between 0 and 1. A Default can (and should) be specified. It accepts the following fields:

  • ED or EDs: the descriptor or descriptors of the enemy or group of enemies you want to track.
  • Default: the value returned when there are no ED or EDs alive. Returns 0 by default.
  • Type: a string value which is either Min, Max or Average. Defaults to Average.

EnemyDistance

This mutator returns the distance of enemies of a descriptor or descriptors. The mutator can be configured to return the maximum, minimum, or average distance to the closest living player among enemies. Distance is in cm. A Default can (and should) be specified based on desired behavior. It accepts the following fields:

  • ED or EDs: the descriptor or descriptors of the enemy or group of enemies you want to track.
  • Default: the value returned when there are no ED or EDs alive. Returns 0 by default.
  • Type: a string value which is either Min, Max or Average. Defaults to Min.

EngineerCount

Number of engineers in the lobby.

Float2String

Converts an float to a string value so it can be used in the Messages module. For conversion from integers to strings, consider Int2String above.

GunnerCount

Number of gunners in the lobby.

HeldResource

For a resource, the sum of that resource in players' inventories, not deposited.

Example:

{
    "Mutate": "HeldResource",
    "Resource": "Apoca Bloom"
}

IWsLeft

Float count of the number of IWs the team still has in reserve, 0 when no IWs remain. This will be 0 until dwarves are spawned which happens after the level is setup including encounters and terrain.

If

Check a boolean condition, "Condition", and select either "Then" or "Else". The condition is usually another mutator that returns a boolean value.

Example: Remove a fast bulk from the pool during a defense objective.

{
  "Mutate": "If",
  "Condition": {"Mutate": "DuringDefend"},
  "Then": [],
  "Else": ["ED_Fast_Bulk"]
}

IfFloat

Choose one value or another based on a comparison of two float values. The two floats are specified by 'Value' and the operator to be used e.g. '>=' if the comparison was to be greater than or equal. If the condition is true the 'Then' value is used, else the 'Else' condition is used. Valid operators are: ==, >=, >, <=, <

Example: as long as the team has called less than 2 resupplies the value is 40. After the team has called their second resupply, the value is 80.

{
    "Mutate": "IfFloat",
    "Value": {"Mutate": "ResuppliesCalled"},
    "<": 2,
    "Then": 40,
    "Else": 80
}

IfOnSpaceRig

The mutator is true when the dwarves are in the space rig, with a syntax similar to the If mutator:

{
    "Mutate": "IfOnSpaceRig",
    "Then": true,
    "Else": false
}

This mutator is mainly used in conjunction with the NextDifficulty module, see in Modules.

Int2String

Converts an integer to a string value so it can be used in the Messages module. For conversion from floats to strings, consider Float2String above.

Join

Joins two strings. Can be used together with Int2String and Float2String to pass integer and float outputs from mutators into the Messages module. It accepts a Values array and a separator Sep. The following example shows a randomized welcome message 15 seconds into the mission:

...,
"Messages": [
    {
        "Send": {
            "Mutate": "DuringMission",
            "StartingAt": 15
        },
        "Message": {
            "Mutate": "Join",
            "Values": [
                        "Welcome to my difficulty! ",
                        {
                            "Mutate": "RandomChoice",
                            "Choices": ["Enjoy your stay.", "Thanks for playing"]
                        }
                    ]
        },
        "Sender": "CD2",
        "Type": "Developer"
    }
],

To see a more complex, check the Countdown mutator above.

LockFloat, LockBoolean, LockString

This mutator will selectively update its value based on a condition. You may use Lock condition or the "Update" condition based on desired semantics:

  • Lock: When true, this mutator's value will not change.
  • Update: When false, this mutator's value will not change.
  • Value: This will be what the mutator will update to when it is unlocked.

The following snippet shows a mutator that will increase each time a dwarf downs until the secondary objective is finished, after which it will no longer increase and will remain the same for the rest of the mission:

{
  "Mutate": "LockFloat",
  "Lock": {"Mutate": "SecondaryFinished"},
  "Value": {"Mutate": "DwarvesDowns"}
}

Another example: we create a mutator that will hold the value of a string until a dwarf is revived, and at that point we randomly select another one. This mutator could be followed by a Select mutator to react to the new string:

{
  "Mutate": "LockString",
  "Update": {
    "Mutate": "TriggerOnChange",
    "FallOnly": true,
    "Value": { "Mutate": "DwarvesDown" }
  },
  "Value": {
    "Mutate": "RandomChoice",
    "Choices": ["ChallengeA", "ChallengeB", "ChallengeC"]
  }
}

Max

Returns the maximum of a value.

Min

Returns the minimum of a value.

MuleDroppodDistance

Returns an average of the distance in cm between the mule and the drop pod during mission extraction. It accepts the following fields:

  • Default: the default value to return when there is no drop pod or there is no mule.

See also: DroppodDistance mutator.

Nonzero

Accepts an integer or float Value and returns the boolean false if zero, true otherwise.

Random

Continuously samples a float number between Min and Max, uniformly.

{
    "Resupply": {
        "Cost": {
            "Mutate": "Random",
            "Min": 40,
            "Max": 60
        }
    }
}

RandomChoice

Given an array of choices, choose one at random. It accepts an optional second list with weights for a weighted sampling of the choices.

Example: add either arbalests or lacerators to the enemy pool with a higher chance for arbalests.

{
    "EnemyPool"{
        "add" {
            "Mutate": "RandomChoice",
            "Choices": ["ED_Spider_Boss_TwinA", "ED_Spider_Boss_TwinB"],
            "Weights": [0.6, 0.4]
        }
    }
}

RandomChoicePerMission

Choose one of a set of values for each mission. The choice is fixed to the seed of the mission. Subsequent plays of the same seed will use the same value. This mutator can be used with just Choices. In that case it will uniformly sample from the choices. Optionally, a second list Weights provides weights for weighted sampling of the choices.

Example:

{
  "Mutate": "RandomChoicePerMission",
  "Choices": [
    "bedrock",
    "hotrock",
    "dirt"
  ]
}

The following will be false 95 % of the time:

{
  "Mutate": "RandomChoicePerMission",
  "Choices": [
    false,
    true
  ],
  "Weights": [
    95,
    5
  ]
}

ResupplyUsesLeft

The count among all supply pods of uses left on a resupply. By default, resupplies start with 4 uses.

Caveat: the counts goes up immediately when a resupply is called, before it lands.

ResuppliesCalled

Number of resupplies the team has called during the mission. This should increment almost immediately after a resupply is initiated, before another resupply can be called.

ResupplyUsesConsumed

The number of uses that have been consumed from resupplies this mission.

SecondaryFinished

Returns a boolean which is true when all secondary objectives have been completed, or when there are no secondary objectives (like in Sandbox).

ScoutCount

Number of scouts in the lobby.

Select

Similar to a switch statement in programming languages, this mutator allows to select different options based on a string value. It is very useful when used together with global variables from the Var module:

...,
"Vars": {
    "Pressure": {
        "Type": "String",
        "Value": "Easy"
    }
},
"DifficultySetting": {
    "EnemyCountModifier": {
        "Mutate": "Multiply",
        "BaseValues": {
            "Mutate": "ByPlayerCount",
            "Values": [1.9, 2.1, 2.7, 3.3]
        },
        "Multiplier": {
            "Mutate": "Select",
            "Select": {"Var": "Pressure"}
            "Default": 1,
            "Easy": 1,
            "Hard": 1.3
        }
    }
},
...

SelectFromArray

Accepts an index Select to pick a value from an Array. The Select field can be a float and then CD2 will round to the nearest integer.

Example: a possible way to use the MercyStacks in the Sequence mutator example below.

{
    "DifficultySetting": {
         "ReviveHealthRatio": {
              "Mutate": "SelectFromArray",
              "Select": {"Var": "MercyStacks"},
              "Array": [ 0.15, 0.2, 0.3, 0.4 ]
    }
}

Sequence

A powerful mutator that allows cycling items in a sequence in various ways, including reversing the direction and shuffling.

Field Type Default Description
Sequence Array None The mutator will return values from this sequence array based on the controls below.
Next Boolean False When switched from false to true, the sequence is moved forward one position.
Previous Boolean False When switched from false to true, the sequence is moved backward one position.
Interval Float None Every Interval seconds, the sequence is automatically moved forward one position. Default is no interval based progress.
Repeat Boolean True If true, when Next is triggered or the interval passes on the final element in the list, the sequence returns to the start. Similarly, Previous will wrap from the begining to the end of the sequence. On False, there is no wrapping.
InitialOffset Integer 0 The sequence starts and resets to the item in this position. The first item is the 0th item.
Reset Boolean False While true, the sequence is reset and held at the InitialOffset position.
Shuffle Boolean False If true, the sequence order is randomized every time the sequence repeats or is reset.
ShuffleOnce Boolean False If true, the sequence order is randomized once per mission and kept the same when reset or when repeating.

Example: cycle the projectiles of a spitballer following a certain sequence every 3 seconds.

{
    "Enemies": {
        "ED_ShootingPlant": {
          "Projectiles": {
                "Mutate": "Sequence",
                "Sequence": [
                    "PRJ_Crye_SnowBall_C",
                    "PRJ_ShootingPlant_C",
                    "PRJ_LineCutter2_C"
                ],
                "Interval": 3
            }
        }
    },
}

Example: Gain a mercy stack every time a player downs up to 4 stacks. Lose a stack every 30 seconds without a player down.

{
    "Vars": {
        "MercyStacks": {
            "Type": "Float",
            "Value": {
                "Mutate": "Sequence",
                "Sequence": [0, 1, 2, 3, 4],
                "Repeat": false,
                "Next": {
                    "Mutate": "TriggerOnChange",
                    "In": {"Mutate": "DwarvesDown"},
                    "RiseOnly": true
                },
                "Previous": {
                    "Mutate": "TriggerTimer",
                    "N": 30,
                    "Reset": {
                        "Mutate": "TriggerOnChange",
                        "In": {"Mutate": "DwarvesDown"},
                        "RiseOnly": true
                    }
                }
            },
            "Watch": true
        }
    }
}

SquareWave

Alternates between two values with a given period.

Example: Add and remove stalkers on alternating periods of 250 seconds.

{
    "EnemyPool": {
        "clear": false,
        "add": [
            {
              "Mutate": "IfFloat",
              "Value": {
                "Mutate": "SquareWave",
                "Period": 250,
                "High": 1,
                "Low": 0
              },
              ">": 0.5,
              "Then": ["ED_Spider_Stalker"],
              "Else": []
            }
        ],
        "remove": [
            {
              "Mutate": "IfFloat",
              "Value": {
                "Mutate": "SquareWave",
                "Period": 250,
                "High": 1,
                "Low": 0
              },
              ">": 0.5,
              "Then": [],
              "Else": ["ED_Spider_Stalker"]
            }
        ],
    }
}

StopWatch

A mutator to starts counting seconds when it gets enabled. Accepts the following fields:

  • Enable: StopWatch counts seconds Enable is true
  • Reset: Resets the StopWatch back to 0 seconds
  • AutoReset : Defaults to true. When true, StopWatch resets to 0 seconds automatically when StopWatch is disabled. When false, StopWatch counts total time enabled even if disabled in between.

TimeDelta

Change a value over time. Time matches the mission clock in the escape menu in-game, including starting before players receive control of their dwarves. The value is determined by InitialValue + RateOfChange * Max(0, Time - StartDelay).

Parameters:

  • InitialValue: Value at time 0 and up until StartDelay
  • StartDelay: Time in seconds to stay at the InitialValue before changing.
  • RateOfChange: Rate per second to change the value.

Example:

{
    "Mutate": "TimeDelta",
    "InitialValue": 3.1,
    "RateOfChange": 0.0033,
    "StartDelay": 400
 }

TotalResource

Sum of a resource held in players inventories and the group depot. Any resource can be referenced by the name as it appears in the in-game UI.

Example:

{
    "Mutate": "TotalResource",
    "Resource": "Morkite"
}

Trigger mutators

These are a special group of mutators that can be used on boolean values, typically (but not limited to) on the Enabled field of a wavespawner. Please see some examples below. The fields of each trigger are specified like this. There are currently the following triggers:

TriggerOnce

Triggers only on the first False -> True In transition, then never again. Used if something has to happen exactly once per mission. It can optionally have a Reset field which resets its ability to trigger.

TriggerNTimes

Allows up to N False -> True In transitions, then blocks any further attempts. Same idea as TriggerOnce but for multiple events.

TriggerSometimes

Triggers only a percentage of times P when In goes from False -> True. As a simple example, this could be used to spawn a wave when a player goes down but only with a probability P of that happening.

TriggerCooldown

After the boolean In goes from True -> False, it can't go True again for N seconds.

TriggerFixedDuration

Stays True for N seconds before switching back to False, regardless of what happens to its boolean input. It can be configured to Reset: true if the input transitions from False -> True during the fixed window.

TriggerSustain

Extends a current True In state by N additional seconds.

TriggerDelay

Delays the transition of the In boolean by N seconds.

TriggerOnChange

It accepts a float input In. The trigger becomes momentarily true if the input float value changes. It accepts the special values RiseOnly and FallOnly to fire only on an increase or a decrease of the input value, respectively.

TriggerTimer

A trigger activated after N seconds pass. It also accepts:

  • Loop (Boolean): restart the timer after triggering (default: true)
  • Reset (Boolean): restart the timer for N seconds. While true, timer waits at N seconds.
  • Enable (Boolean): equivalent to not-Reset, while true timer counts down from N. While false, timer waits at N seconds.

Trigger examples

The following is an example on how to use triggers. It spawns a small wave of exploders 15 seconds after calling a resupply, but only 30 % of the time:

  "WaveSpawners": [
    {
      "Enabled": {
        "Mutate": "TriggerSometimes",
        "P": 0.3,
        "In": {
          "Mutate": "TriggerDelay",
          "N": 15,
          "In": {
            "Mutate": "TriggerOnChange",
            "In": {
              "Mutate": "ResuppliesCalled"
            }
          }
        }
      },
      "Enemies": [
        "ED_Spider_Exploder"
      ],
      "Difficulty": 300,
      "Interval": 20,
      "Distance": 50,
      "Locations": 3,
      "SpawnOnEnable": true
    }
  ]

Following the order of the mutators:

  • TriggerOnChange detects a change in ResuppliesCalled and becomes momentarily True.
  • TriggerDelay adds a delay of 15 seconds to the TriggerOnChange transition.
  • Finally, TriggerSometimes lets the True transition pass but only 30 % of the time.

A similar example, but now the waves of exploders is sustained for 20 seconds:

  "WaveSpawners": [
    {
      "Enabled": {
          "Mutate": "TriggerFixedDuration",
          "N": 20,
          "In": {
            "Mutate": "TriggerSometimes",
            "P": 0.3,
            "In": {
              "Mutate": "TriggerDelay",
              "N": 15,
              "In": {
                "Mutate": "TriggerOnChange",
                "In": {
                  "Mutate": "ResuppliesCalled"
                }
              }
            }
          }
      },
      "Enemies": [
        "ED_Spider_Exploder"
      ],
      "Difficulty": 20,
      "Interval": 1,
      "Distance": 50,
      "Locations": 3,
      "SpawnOnEnable": true
    }
  ]

The chain of mutators is the same, but now a TriggerFixedDuration has been added on top which will grant a 20 second window for the wavespawner to be active. Since its Interval is set to 1, this will generate 20 spawn events in total.
